1800mm Long Kitchenhood Fan & Speed Controller

SKU: FAN1800
1800mm Long Kitchenhood Fan & Speed Controller

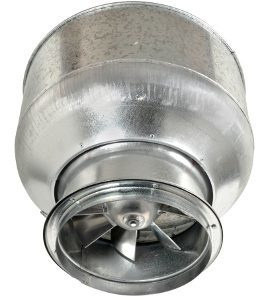

This roof mounted kitchen exhaust fan is suitable for a AS1668.2-2002 or 2012 designed commercial kitchen hood hood with the maximum outside hood measurements of 1800mm(W) x 1100(D) x700mm(H).

The kitchen exhaust airflow this fan can achieve is based on Type 1,2,3,4 cooking equipment with a maximum length of 1500mm so it stays within 150mm of the outside perimeter of the kitchenhood. Also it is based on the kitchenhood being mounted at 2000-2100mm above the finished floor level and being mounted on a sidewall with two open ends. Achieving the minimum required kitchen exhaust airflow is based on a small vertical run of solid 450mm dia glavanised kitchen exhaust duct as a minimum duct size and not exceeding 4 metres in length without bends.

If your kitchen exhaust duct layout requires a number of bends and or exceeds 4 metres in length to reach the roof from the kitchen exhaust canopy when using a 1800mm hood then you will need to go up to FAN 2400 which will be suitable to deliver the airflow required for a 1800mm hood with a duct layout consisting of two to three 90 degree bends and up to 8 metres of solid galvanised kitchen exhaust ducting with a minimum duct size of 450mm x 450mm square.

1800mm Long Kitchenhood Fan & Speed Controller $2,860.00 add to cart
