3000mm Long Kitchenhood Fan & Speed Controller

SKU: FAN3000
3000mm Long Kitchenhood Fan & Speed Controller

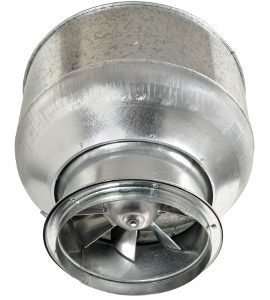

This roof mounted kitchen exhaust fan is suitable for a AS1668.2-2002 or 2012 designed commercial kitchen hood hood with the maximum outside hood measurements of 3000mm(W) x 1100(D) x700mm(H).

The kitchen exhaust airflow this fan can achieve is based on Type 1,2,3,4 cooking equipment with a maximum length of 2600mm so it stays within 150mm of the outside perimeter of the kitchenhood. Also it is based on the kitchenhood being mounted at 2000-2100mm above the finished floor level and being mounted on a sidewall with two open ends. Achieving theminimum required kitchen exhaust airflow is based on a small vertical run of solid 500mm x 500mm or 600mm dia glavanised kitchen exhaust duct as a minimum duct size and not exceeding 4 metres in length without bends.

If your kitchen exhaust duct layout requires a number of bends and or exceeds 4 metres in length to reach the roof from the kitchen exhaust canopy when using a 3000mm hood then you will need to go up to FAN 3600 which will be suitable to deliver the airflow required for a 3000mm hood with a duct layout consisting of two to three 90 degree bends and up to 8 metres of solid galvanised kitchen exhaust ducting with a minimum duct size of 600mm dia or 500mm x 500mm.

3000mm Long Kitchenhood Fan & Speed Controller $3,915.00 add to cart
